Specification Details

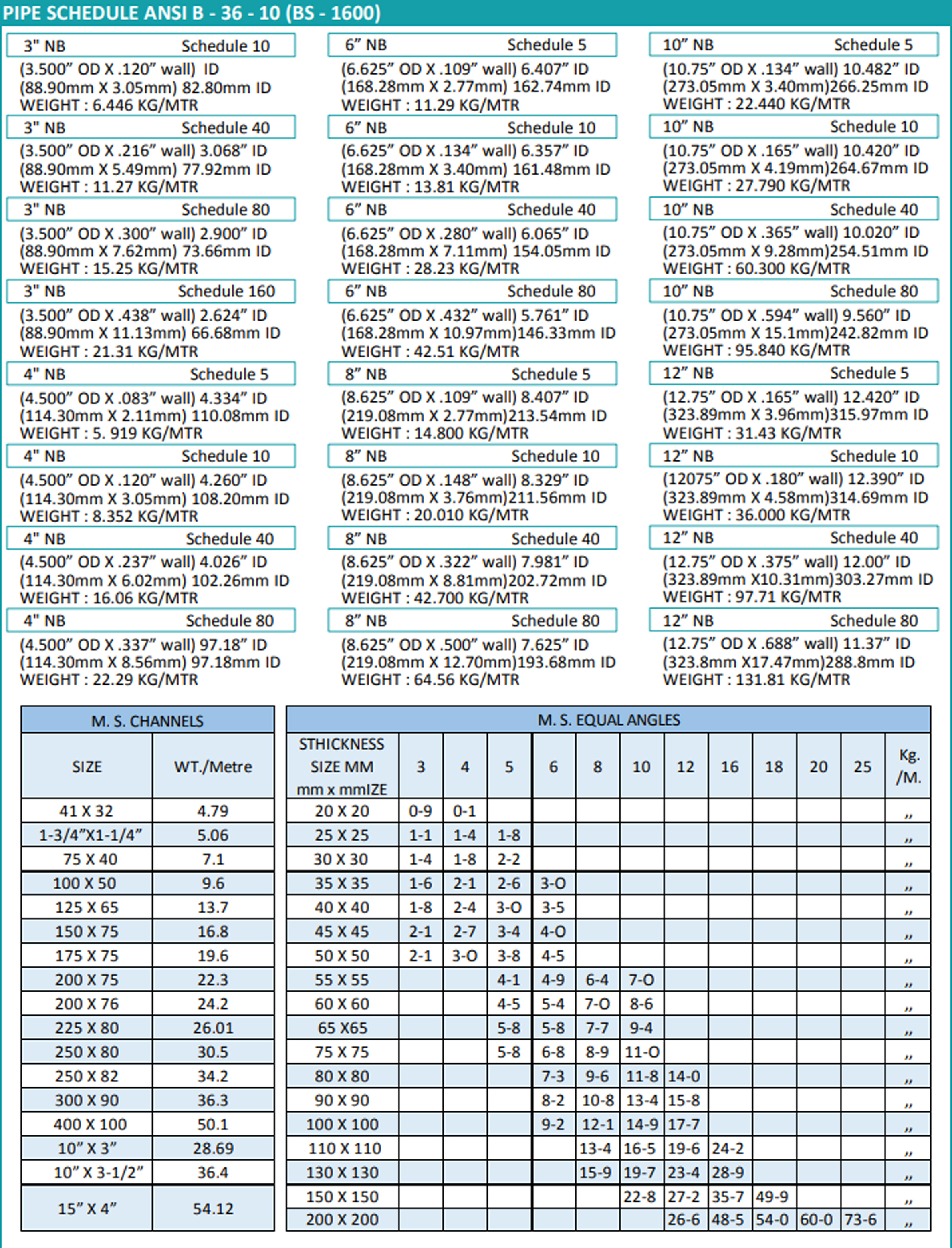

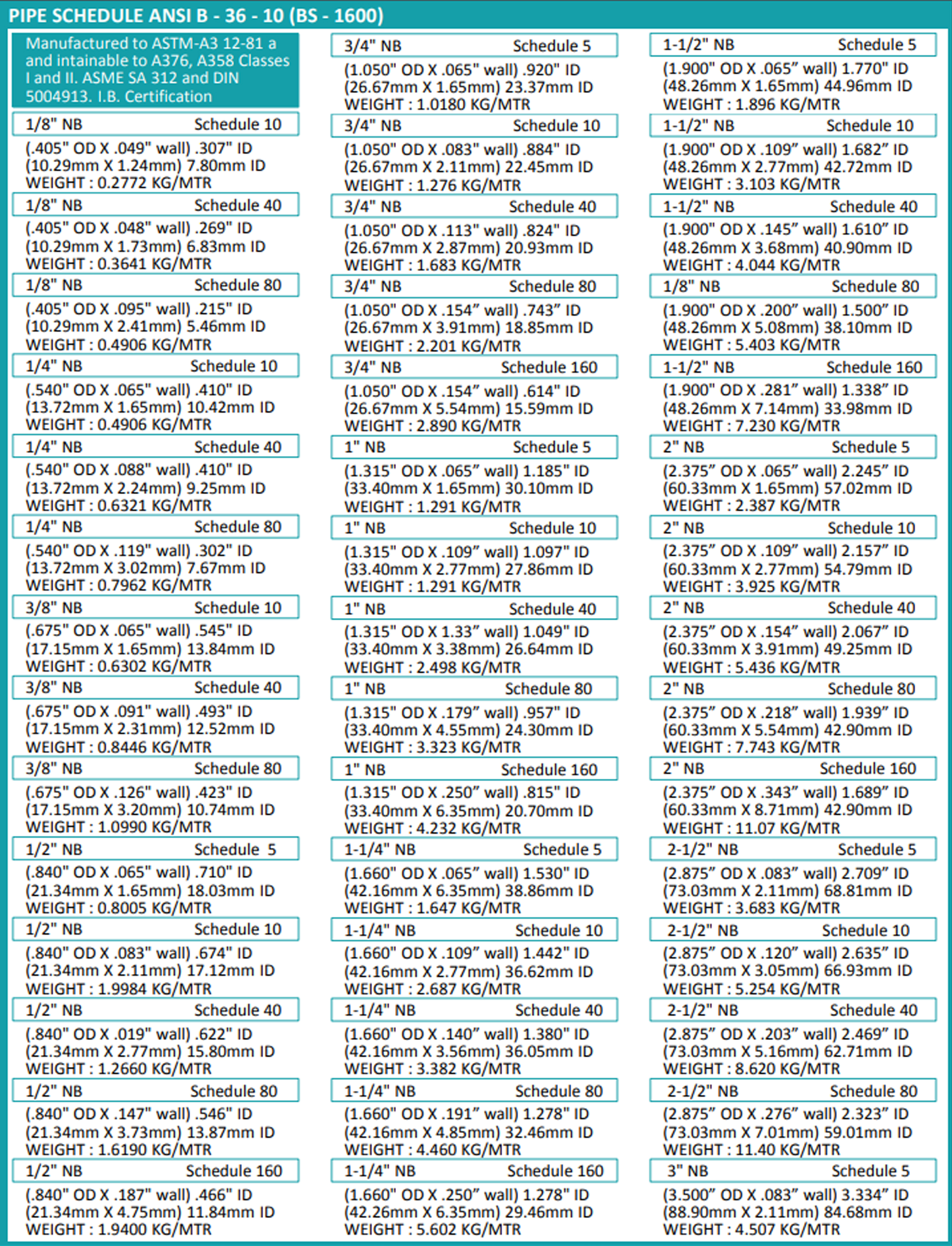

PIPE SCHEDULE ANSI B - 36 - 10 (BS - 1600) :-

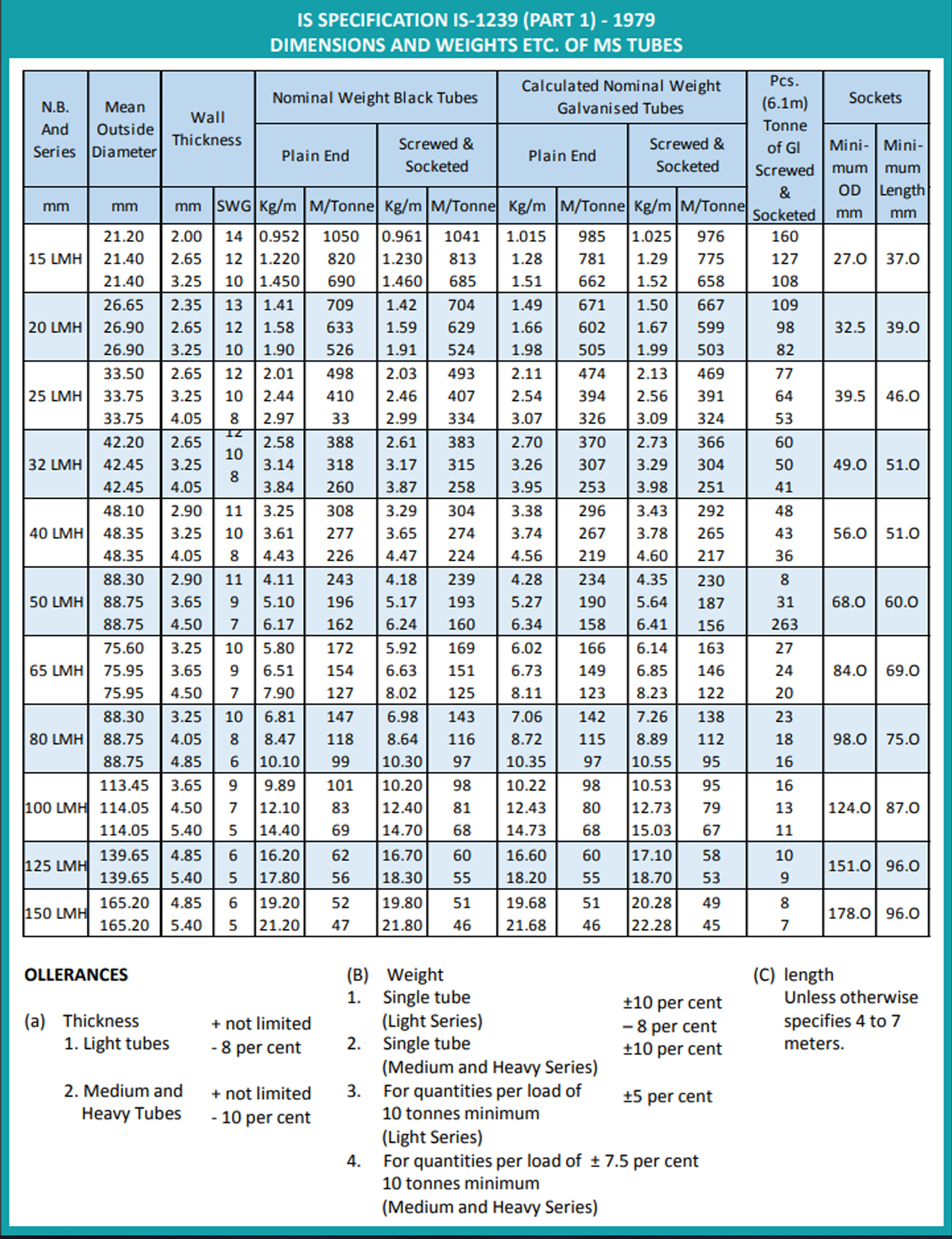

  • IS SPECIFICATION IS-1239 (PART 1) - 1979 dimensions & weights etc. of MS Tubes :-
    Thumb-1

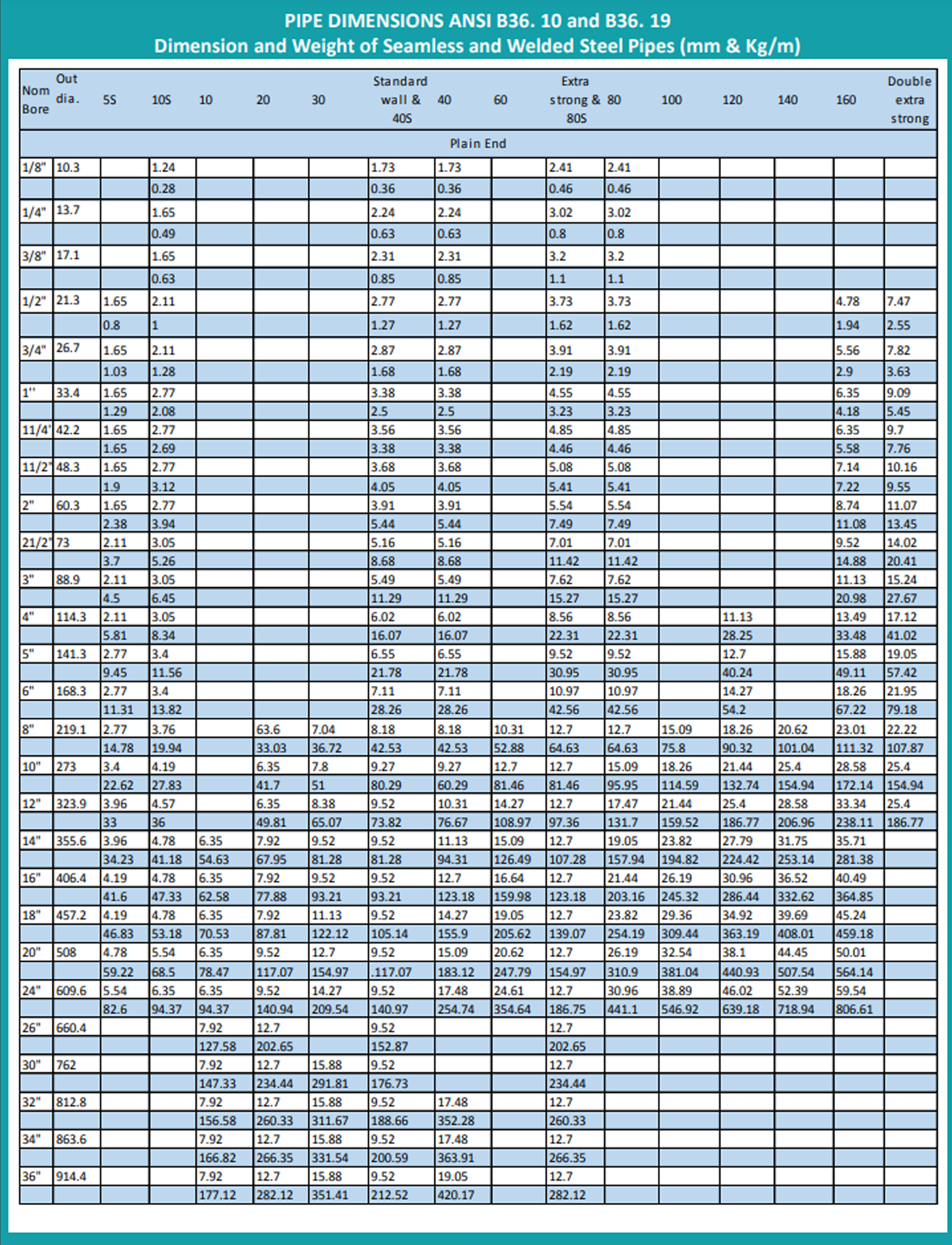

  • PIPE DIMENSIONS ANSI B36. 10 & B36. 19 Dimension and Weight of Seamless and Welded Steel Pipes (mm & Kg/m) :-
    Thumb-1

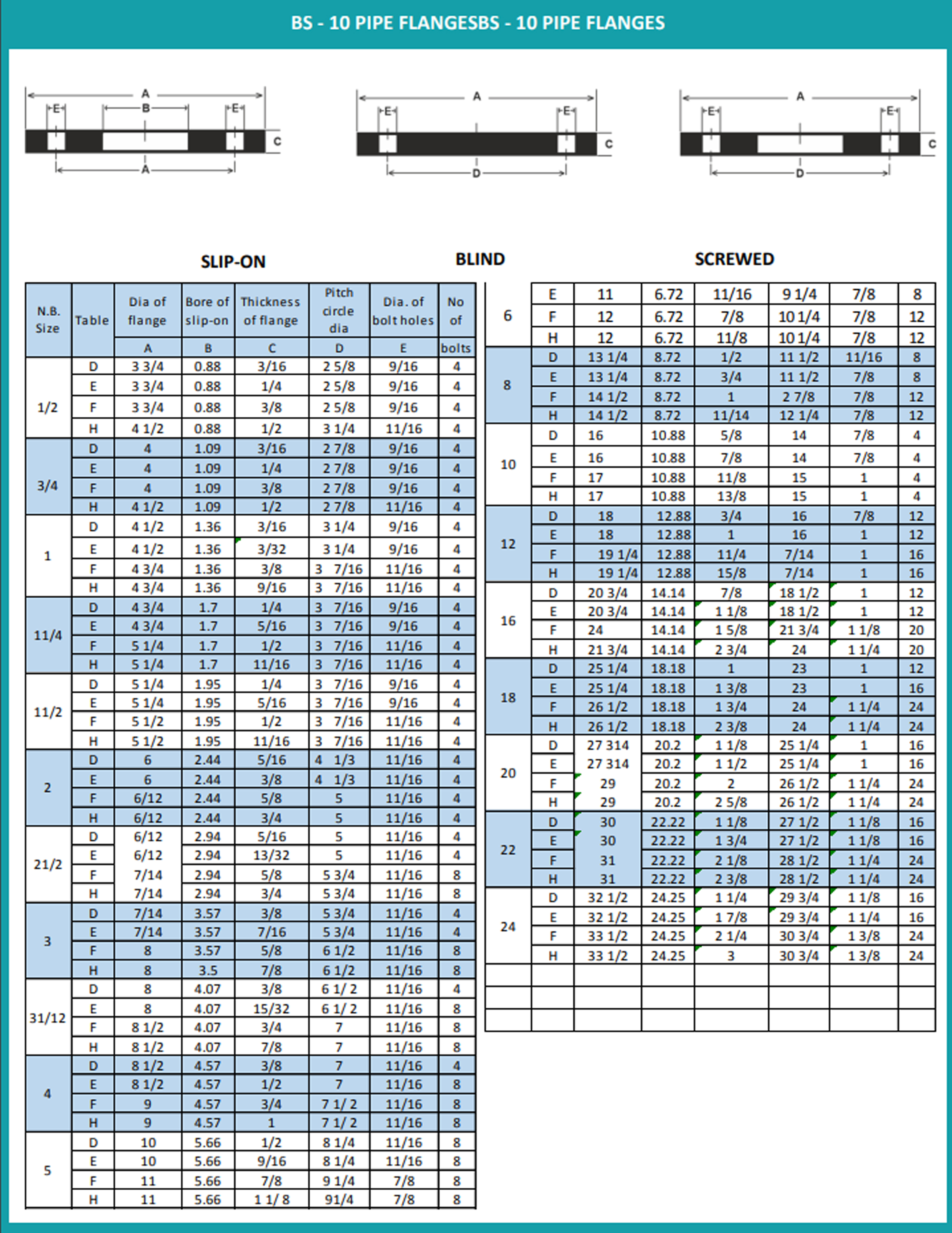

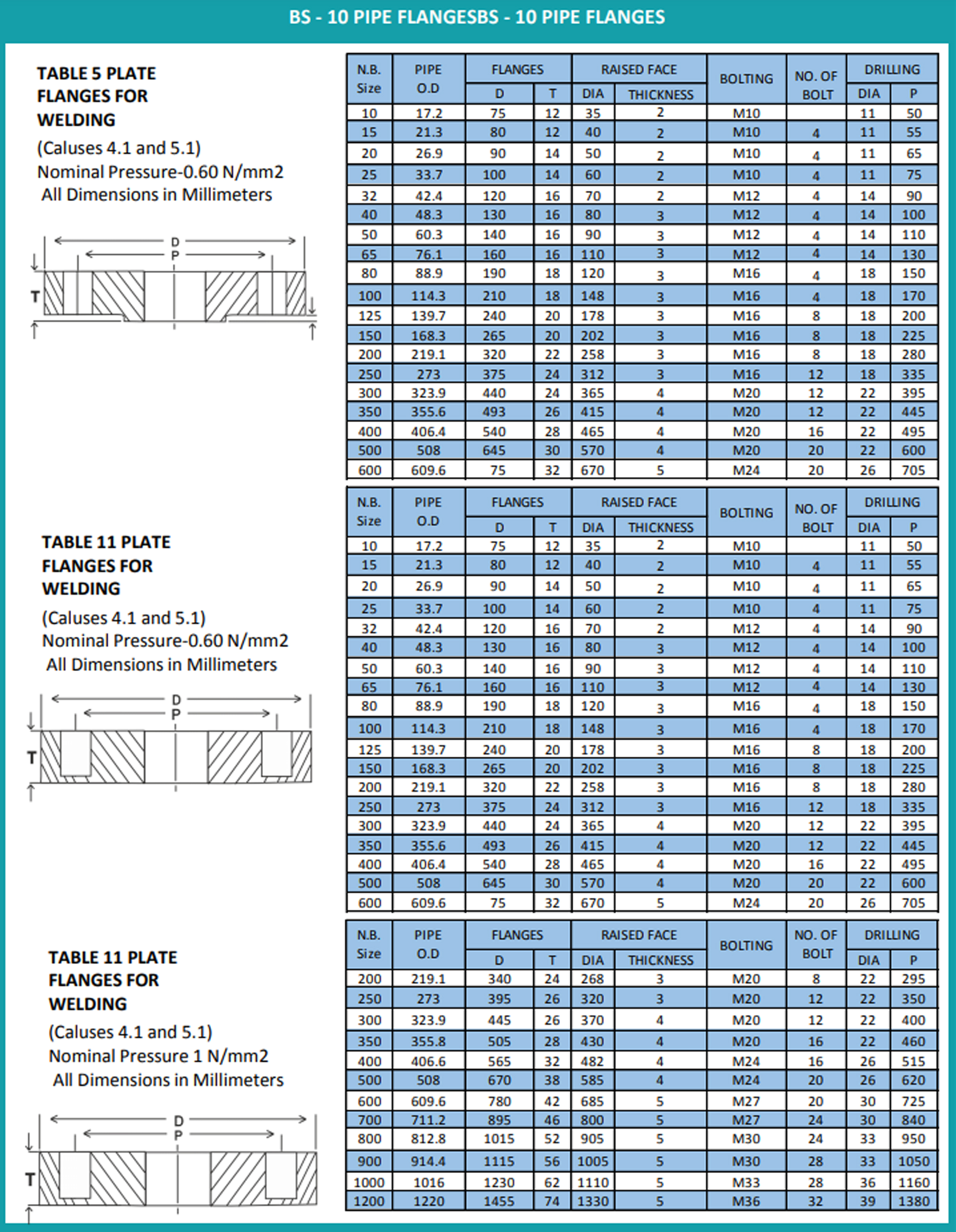

BS - 10 PIPE FLANGESBS - 10 PIPE FLANGES :-

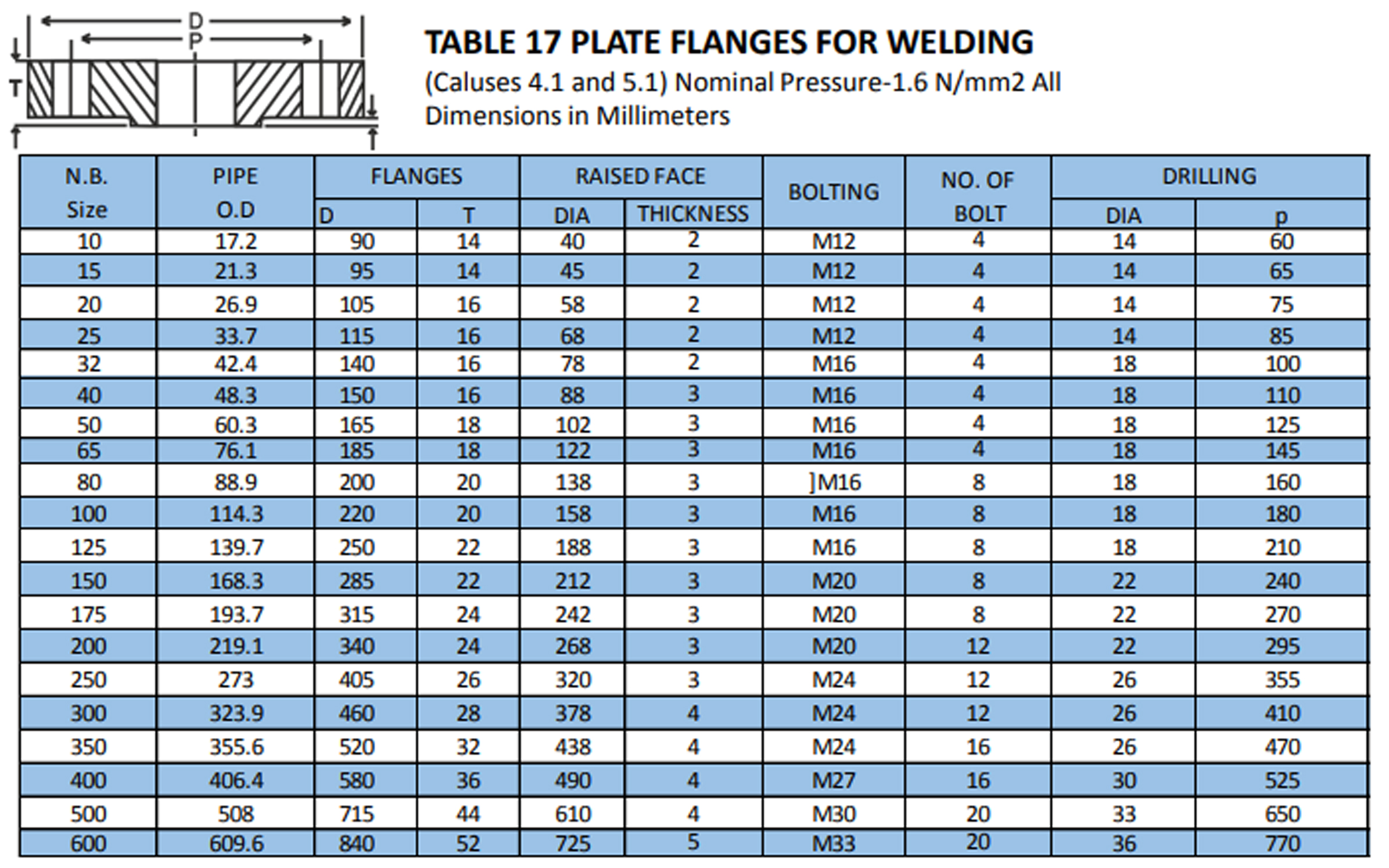

  • PLATE FLANGES FOR WELDING :-
    Thumb-1

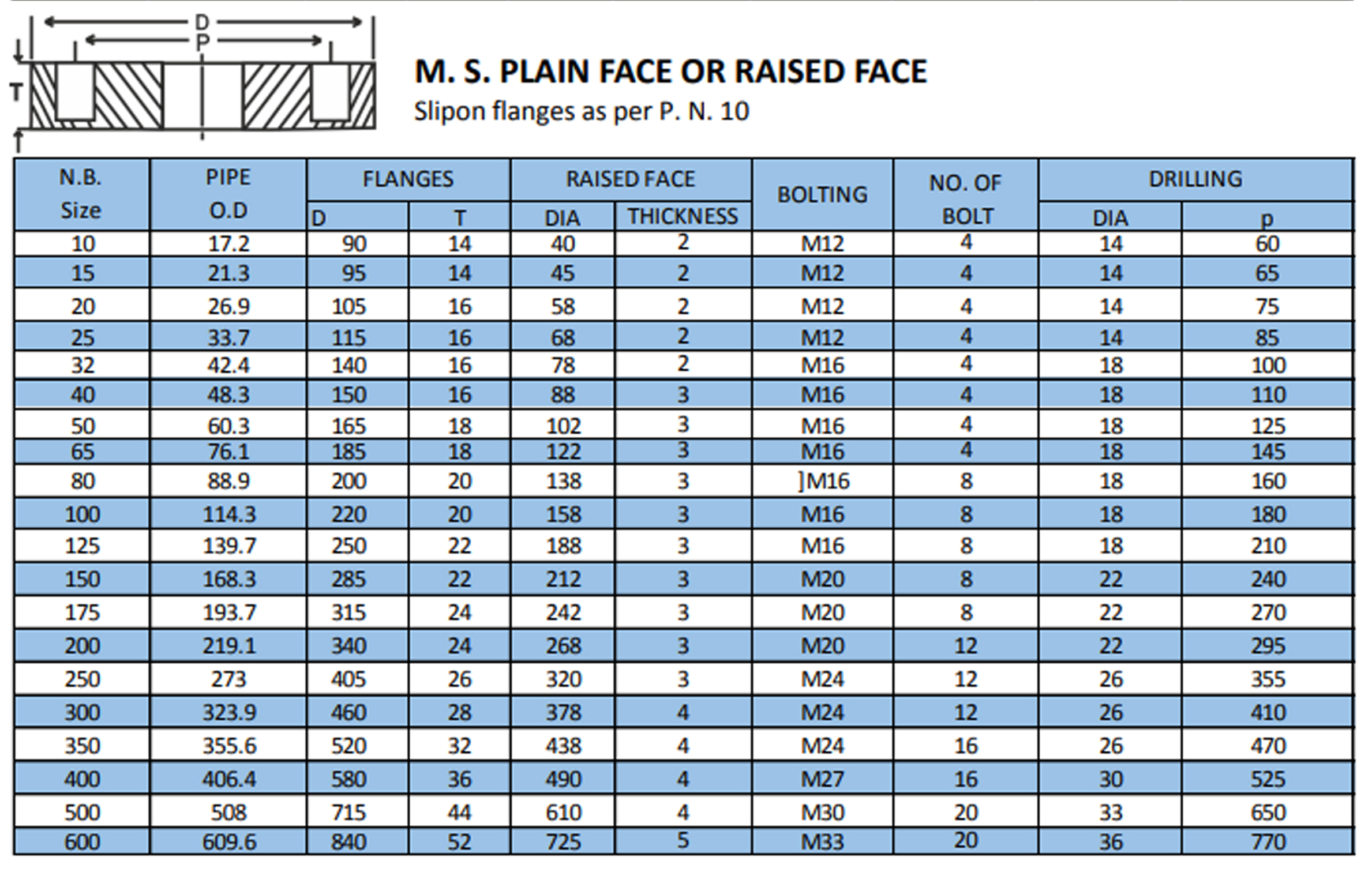

  • M. S. PLAIN FACE OR RAISED FACE :-
    Thumb-1

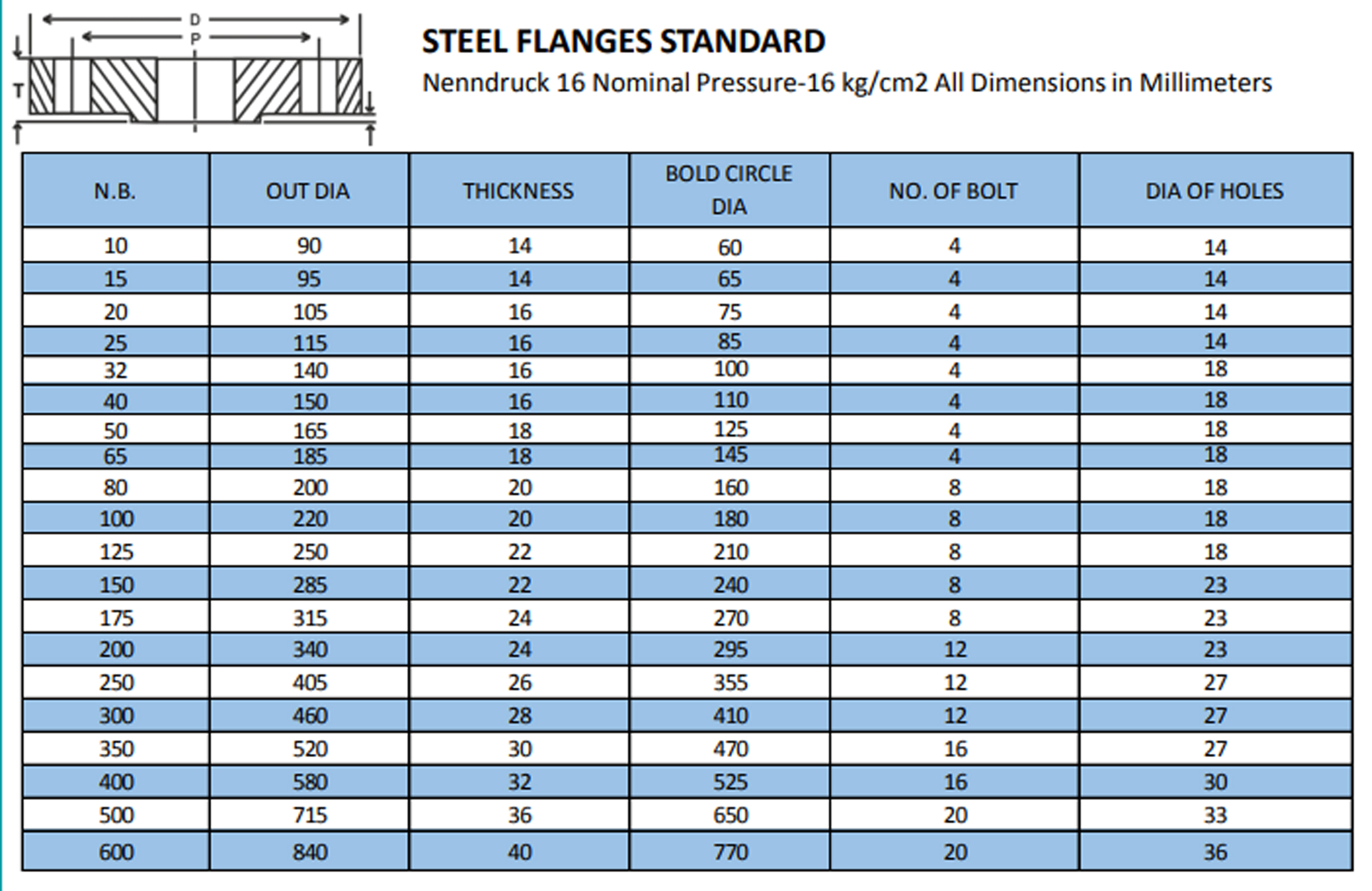

  • STEEL FLANGES STANDARD :-

    Nenndruck 16 Nominal Pressure-16 kg/cm2 All Dimensions in Millimeters

    Thumb-1

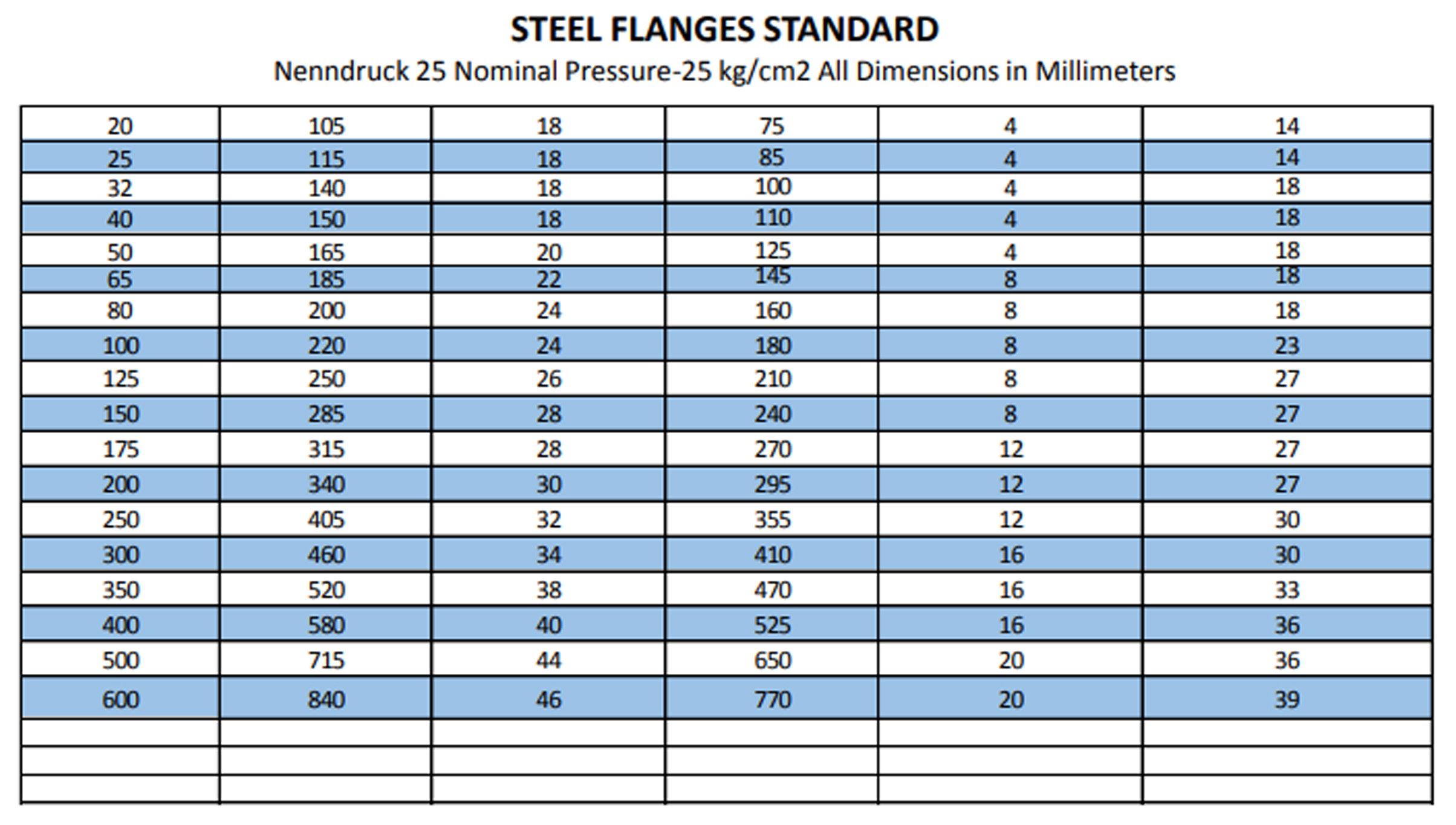

  • STEEL FLANGES STANDARD :-

    Nenndruck 25 Nominal Pressure-25 kg/cm2 All Dimensions in Millimeters

    Thumb-1

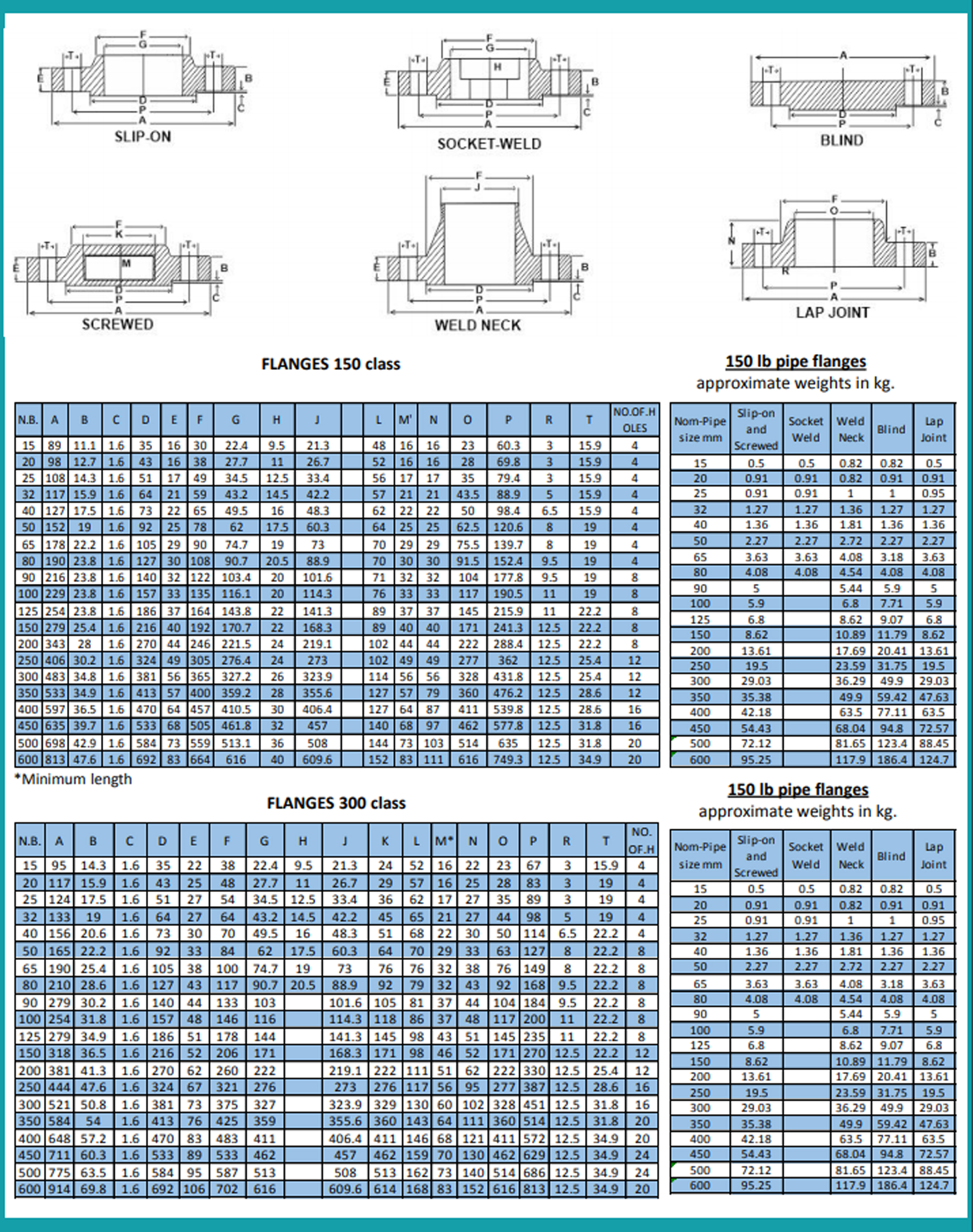

  • FLANGES 150 & 300 class :-
    Thumb-1

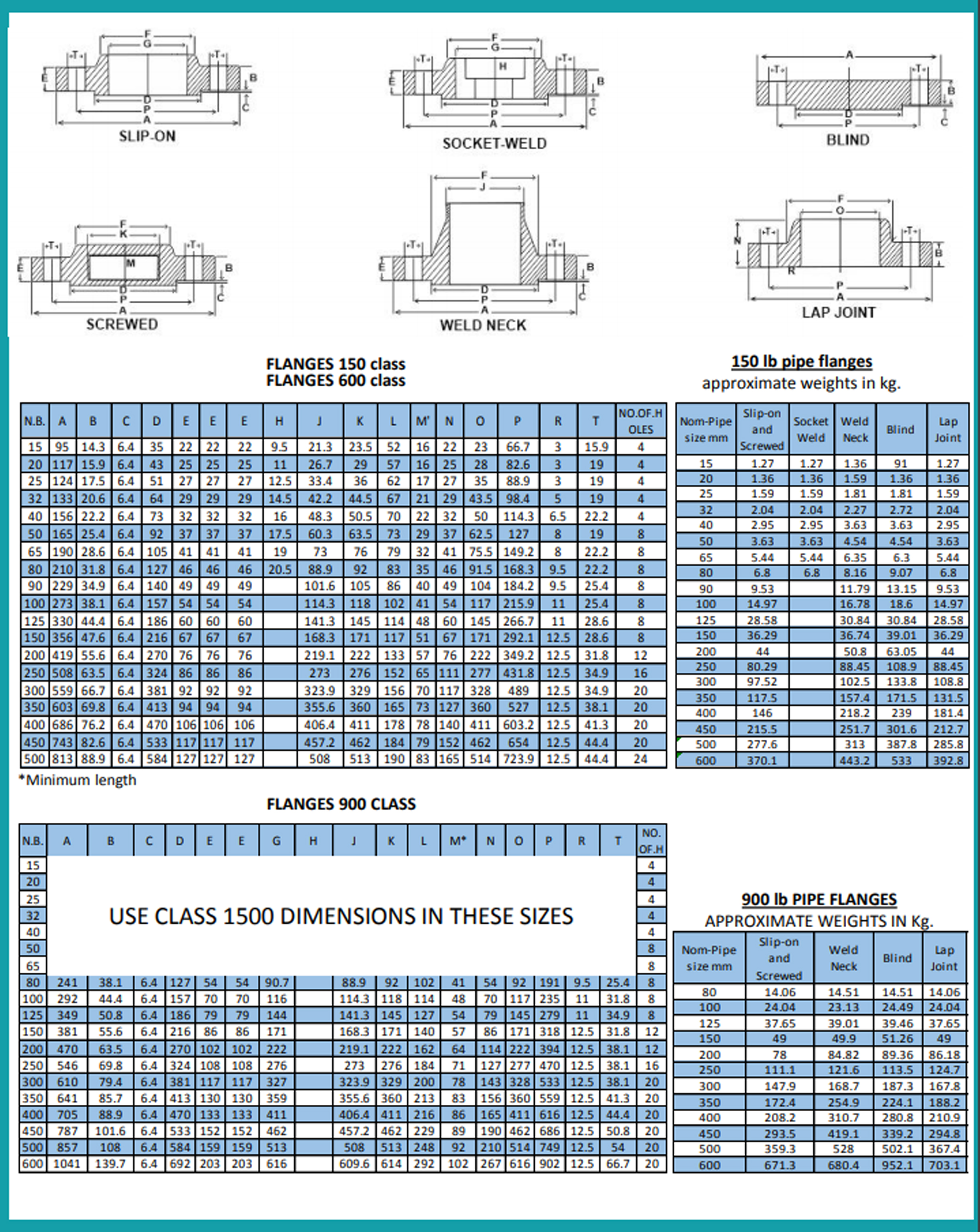

  • FLANGES 150, 600 & 900 class :-
    Thumb-1

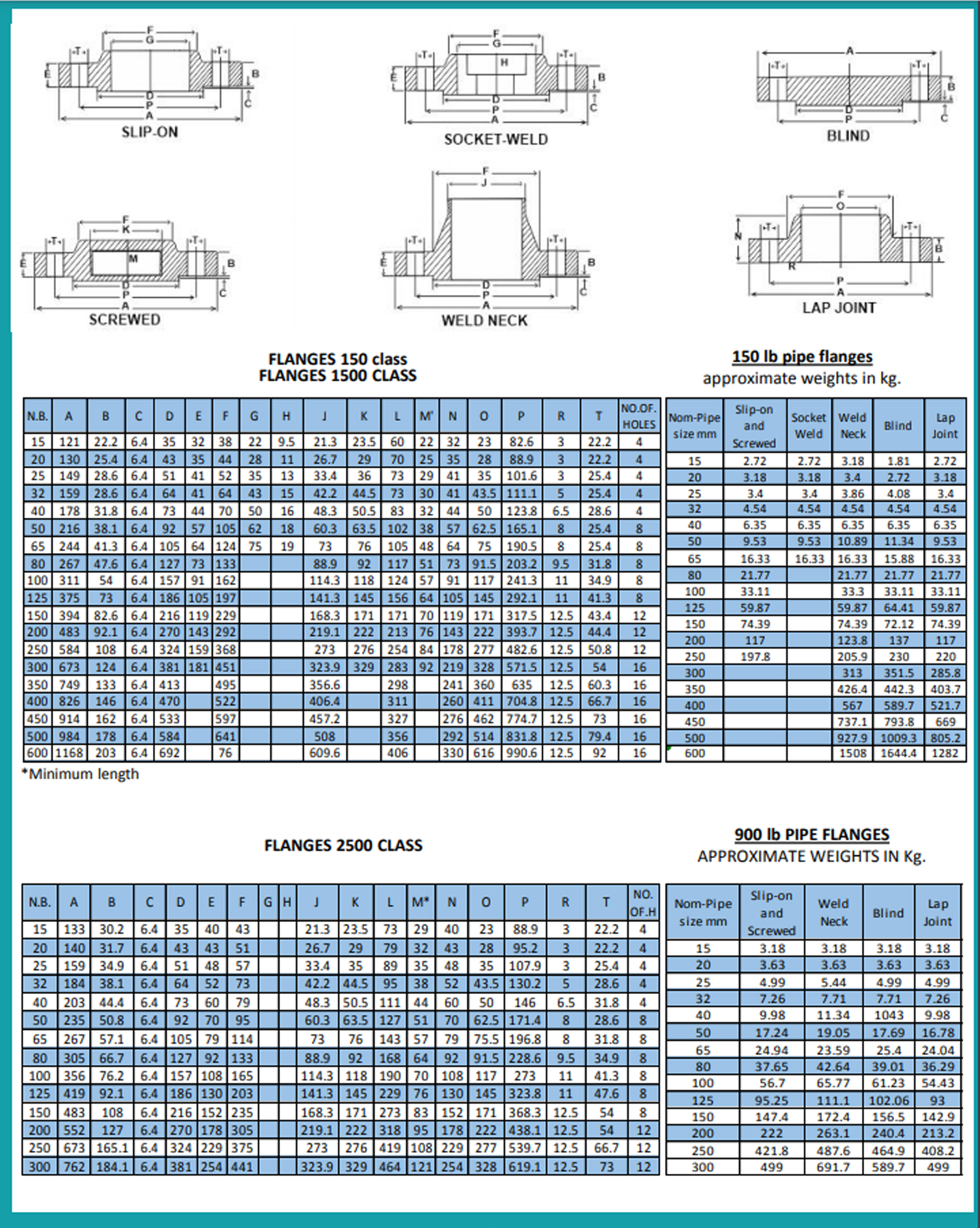

  • FLANGES 150, 1500 & 2500 class :-
    Thumb-1

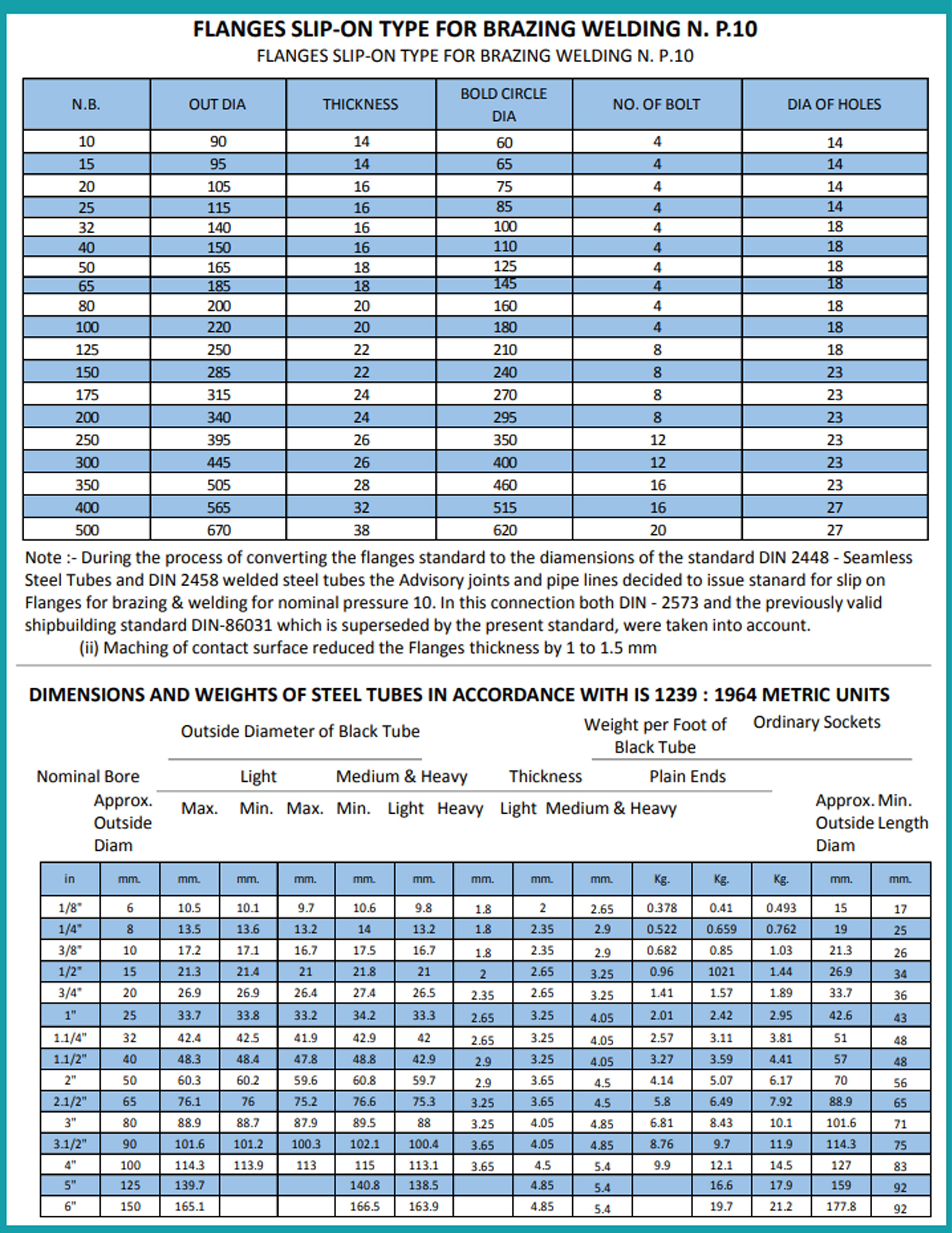

  • FLANGES SLIP-ON TYPE FOR BRAZING WELDING N. P.10 :-
    Thumb-1

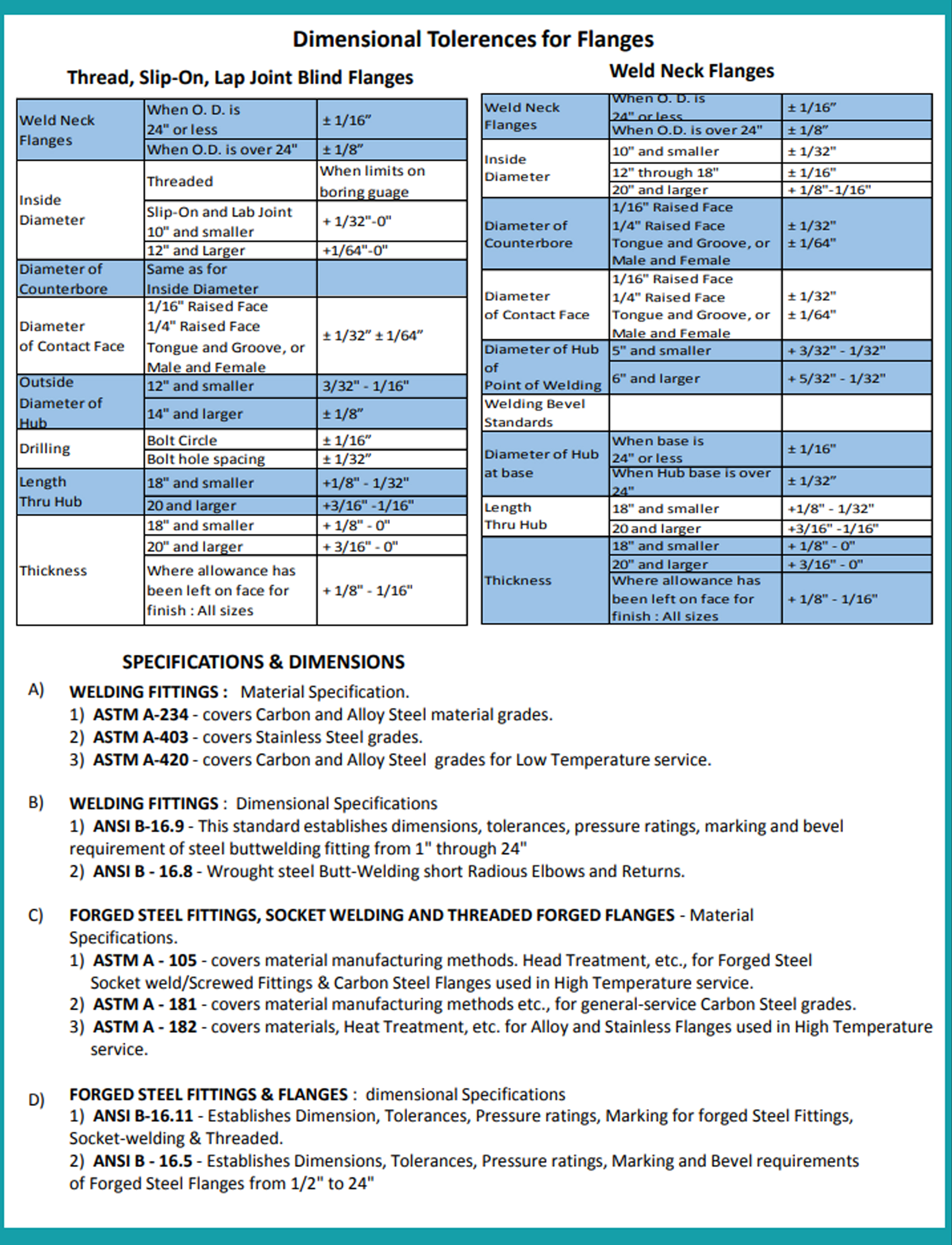

  • Dimensional Tolerences for Flanges :-
    Thumb-1

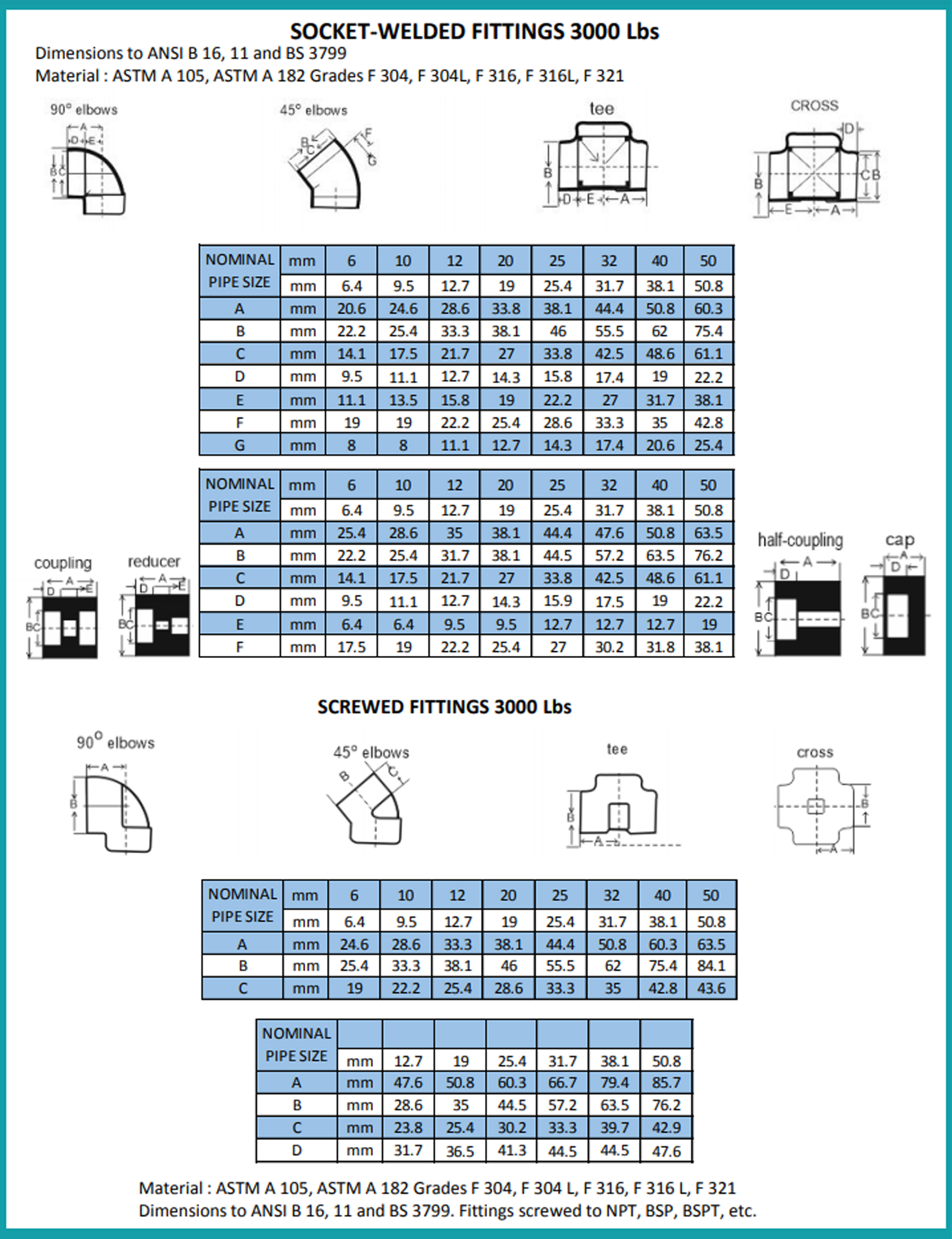

  • SOCKET - WELDED FITTINGS 3000 Lbs :-
    Thumb-1

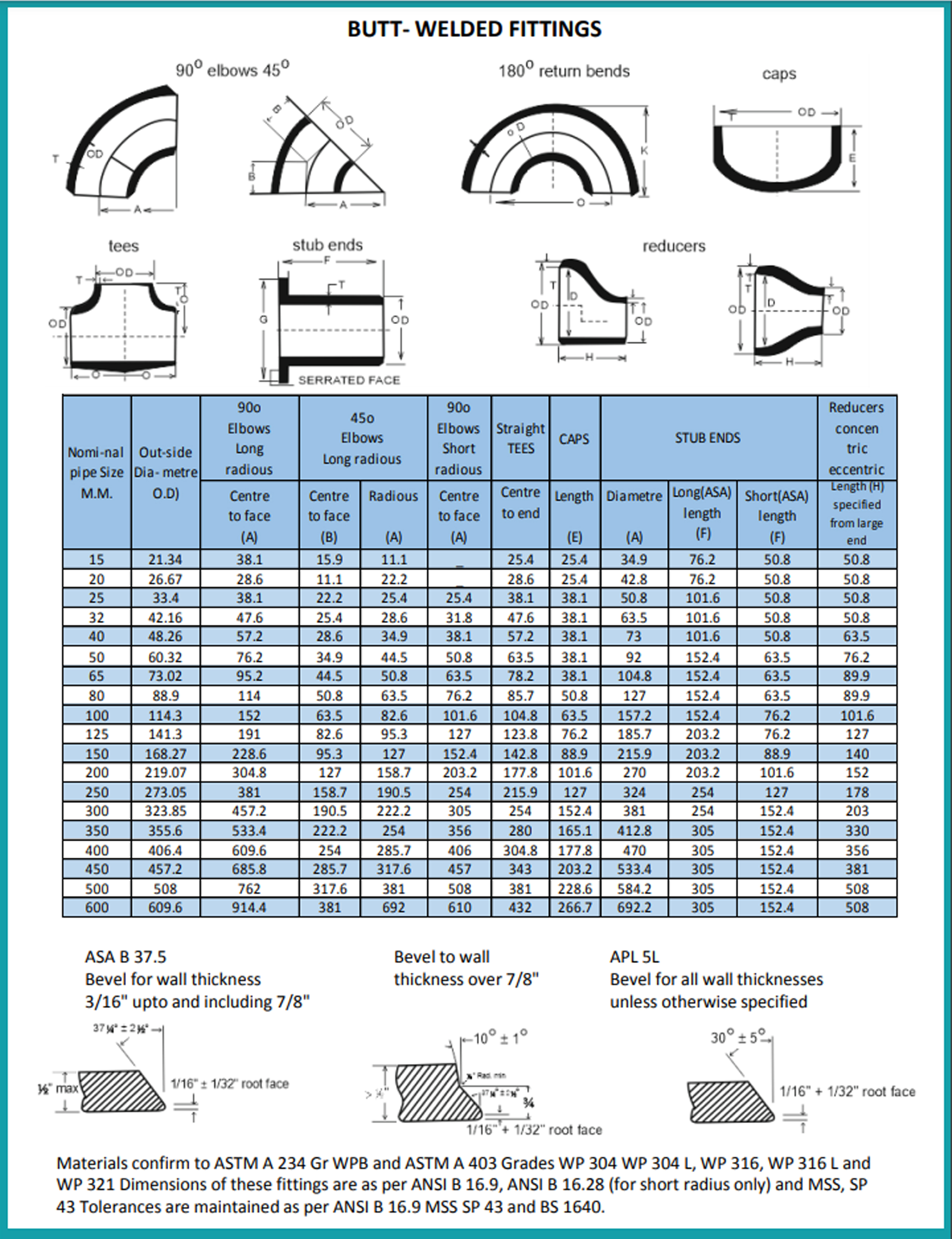

  • BUTT - WELDED FITTINGS :-
    Thumb-1

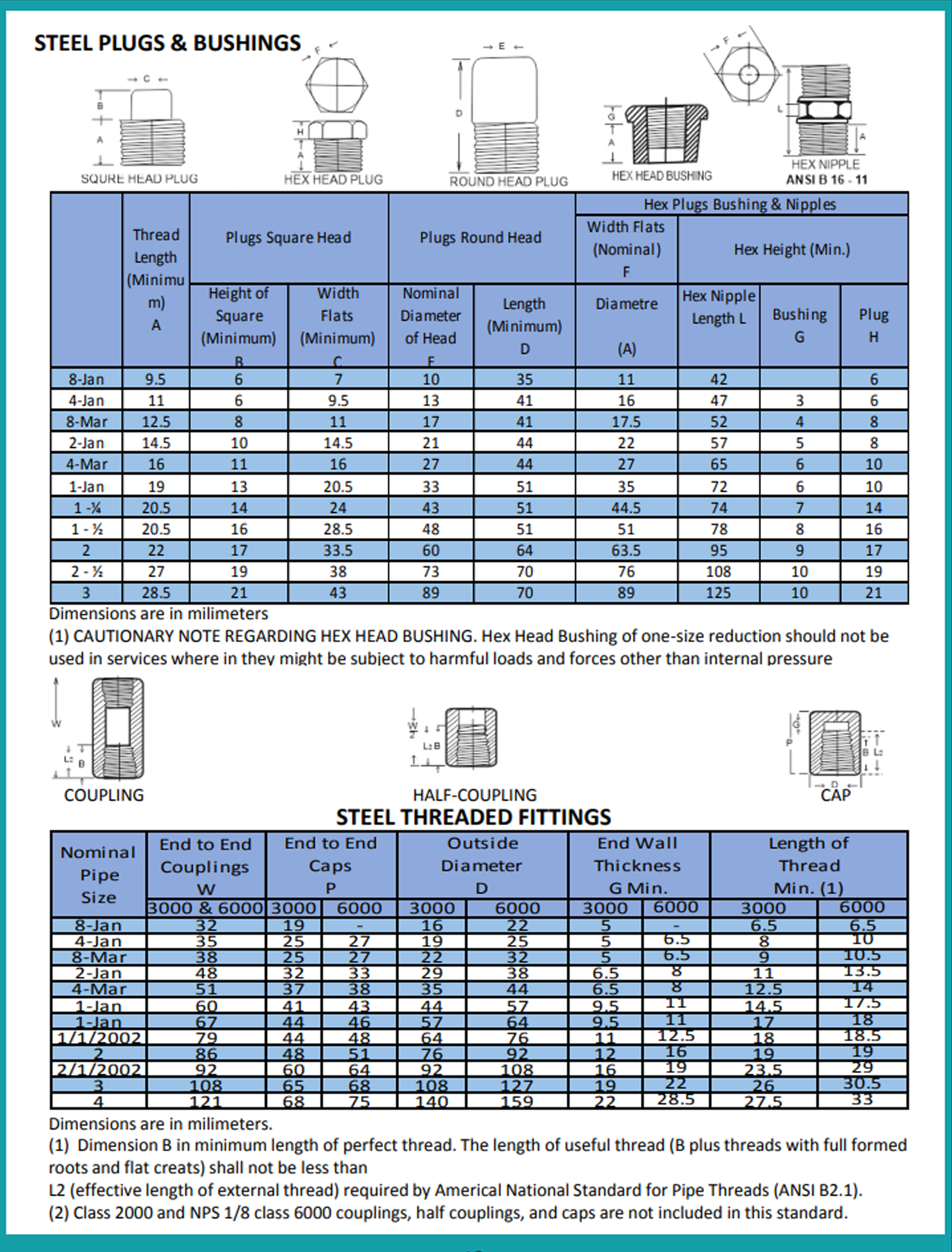

  • STEEL PLUGS & BUSHINGS :-
    Thumb-1

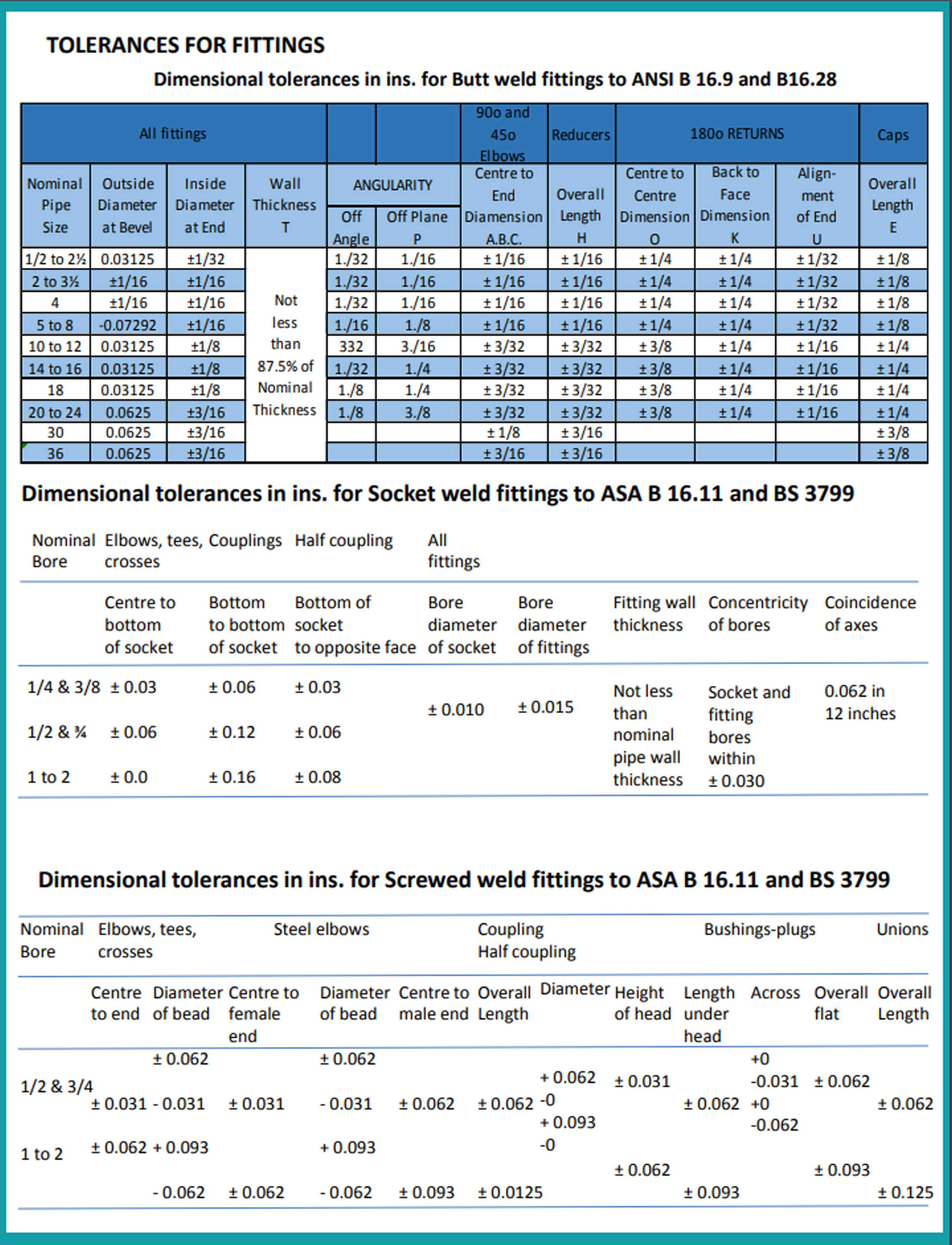

  • TOLERANCES FOR FITTINGS :-
    Thumb-1
